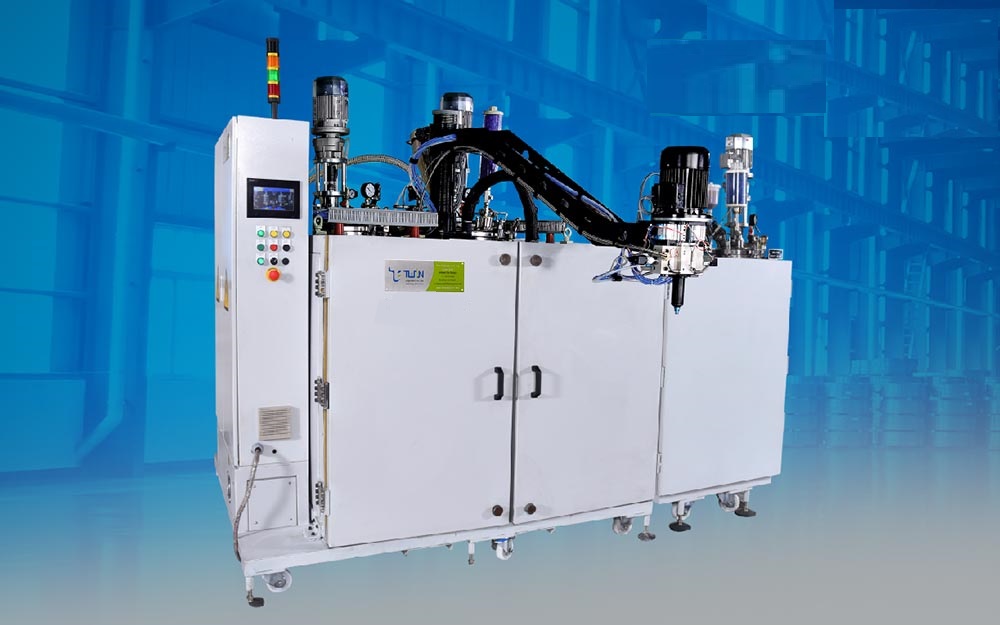

2/3/5/6 Component Cast Elastomer Polyurethane Machines (MDI/TDI)


The Extensive Series MMD systems offers industry-leading features to improve the productivity of Cast PU processes by multi-fold. The system is designed to easily integrate multiple components (pigments, additives etc.) through direct injection. The Extensive range systems are suitable for cast PU component manufacturing with high-volume or high-flow rate methods. The Extensive Series systems offer unparalleled performance across a variety of processes, materials and components

Technical Specifications

2 COMPONENT MDI/TDI

Flow rateUp to 20 Kg/min
RatioVariable
Recipes25
Tank capacity400 L  l  60 L
Temperature (Adjustable)1000C l 1300C

3 COMPONENT MDI/TDI

Flow rateUp to 20 Kg/min
RatioVariable
Recipes25
Tank capacity400 L  l  400 L  l  60 L
Temperature (Adjustable)1000C  l  1000C  l  1000C  l

Key Machine Features

Modular design
Stainless steel tanks
Electrical heating
Raw material recirculation
Stirrers to prevent material sedimentation
Pigment/additive direct injection line (optional)
Observation glass on tanks

Controller Features

Set and Monitor temperatures, pump ratio, pressures, flow rates
Production and operation data storage
Calibration cycle
Alarms for cycle completion
Operator faults and alerts
